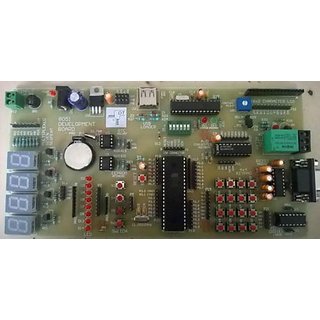

8051 Development Board AT89C51/C52/S51/S52/V51RD2 with On Board Programmer

Features 1.      Support AT89C51/C52/S51/S52/P89V51RD2 with on board IC socket. 2.   On Board Programmer (with Loaded firmware IC) for IC AT89S51/S52 series.(No need external Programmer)   3.      On board regulated power supply 5V & 12V (1 Amp). 4.      Interface with 8 LEDs and 4 Switches (Push to ON). 5.      On board header connector and ISP connector. 6.        USART interface with DB9 (Female) and MAX232 IC. 7.         16 x 2 LCD with contrast adjustment. 8.         On board Crystal (11.0592MHz) and RESET circuit. 9.      12V one channel Relay with Ternal Connector. 10.   On Board RTC DS1307( Back Up) and EEPROM AT24CXX. 11.   4 Multiplexed Common Anode Seven Segment Display. 12.   DC Motor Driver with  L293D and one channel A/D converter with ADC0804. 13.   On board 4 x4 Multiplexed Keypad. Shipping Contents 1 x 8051 Development Board (Without  ICs ADC0804,L293D,DS1307,AT24C02)(IC At89S52 and MAX232 is included) Burg Connectors 25 Nos. Cable M/M Type A length 1.5MTR.   Note: LCD 16 X 2 and Power supply Adopter is not included with Shipping Contents.
